DIP Technology

A double in-line package is a package of electronic components with a rectangular housing and two parallel rows of electrically connected pins. The package is mounted through holes into a printed circuit board (PCB) or into a socket. dip screens have a single LED for the three main colors: red, green and blue.

Advantages of DIP

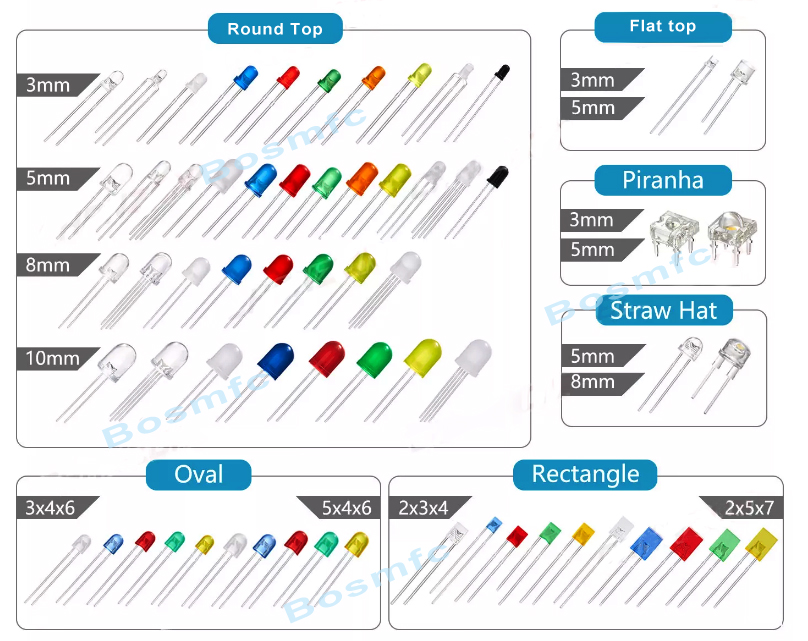

1. For DIP, each pixel consists of three separate color (RGB) LED chips. Each chip has two long legs. The long feet are inserted into the PCB pads, and cold soldering problems rarely occur after through-hole soldering. SMD LED displays have short feet, and the LEDs are mounted on the PCB pads, which are more likely to cause cold soldering problems than DIP.

2. Longer feet allow LED bulbs to do better in terms of heat dissipation. Better heat dissipation means a longer life for LED displays. Therefore, in the long run, DIP LEDs will be more durable than SMD LEDs.

3. The large size of DIP LED lamps allows LED screens to present higher brightness. Usually normal brightness DIP LED displays can reach 7,500nits, while high brightness can reach 10,000nits or more. Usually the brightness of outdoor SMD LED display is around 6,000nits.

4. Compared with the same specification SMD, DIP LED screen consumes less power. Usually the power consumption of DIP LED display is 1/3 less than SMD.
